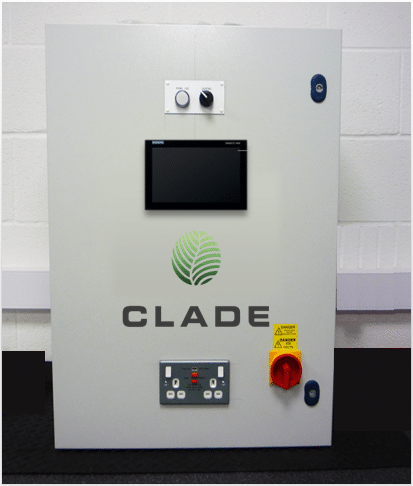

Acer Heat Pump Control Panel
The Acer heat pump control panel from Clade is designed to streamline control for multiple heat pumps, making integration with Building Management Systems (BMS) straightforward. This wall-mounted master controller can manage up to 8 heat pumps, providing reliable capacity control with options for 0-10V BMS adjustment or internal sensor-based control.
With a compact build, IP55 rating, and features like sequencing and defrost management, it ensures efficient heating operations, minimising downtime and maintaining peak performance during frost cycles. Ideal for complex heating setups, the Acer panel is a robust solution for centralised heat pump management.
Benefits of Heat Pump Control Panels
- Centralised Control for Up to 8 Heat Pumps: Manages up to 8 heat pumps within a single system, simplifying control for large or multi-unit installations.
- Easy BMS Integration: Reduces BMS modification requirements with a single enable and fault signal, plus optional full BACnet capabilities for seamless connectivity.
- Flexible Capacity Control Options: Offers both a 0-10V BMS input for precise heating capacity adjustment (0% to 100%, based on demand) and internal control using buffer temperature sensors.
- Automated Heat Pump Sequencing: Automatically sequences heat pump activation based on system capacity needs, rotating the lead pump to balance wear and optimise performance.
- Defrost Cycle Management for Peak Efficiency: Incorporates a hot gas defrost function, maintaining system capacity by isolating pumps for defrost in intervals, with a buffer vessel sized to store 30 minutes’ peak kW output.
- Fail-Safe System Health Monitoring: Includes a volt-free, fail-safe health relay contact (250VAC / 24VDC, 10A resistive) for real-time system health updates to the BMS.
- Compact and Durable Design: Measures 800mm x 600mm x 200mm and weighs 34 kg, with an IP55 rating for robust, indoor use.
- Energy Efficiency and Cost Savings: Intelligent sequencing and capacity control reduce energy use, cutting operational costs while maintaining optimal heating.
Acer Master Controller Models
Small Master Controller
Key Features:
- Controls 1 to 4 heat pumps
- Easy BMS integration
- Defrost cycle management
- Fail-safe system health monitoring
- Automated heat pump sequencing
- IP55 rating for internal use only
Large Master Controller
Key Features:
- Controls 1 to 8 heat pumps
- Easy BMS integration
- Defrost cycle management
- Fail-safe system health monitoring
- Automated heat pump sequencing
- IP55 rating for internal use only
THE CLADE HEAT PUMP PERFORMANCE GUARANTEE
To give our heat pumps customers complete peace of mind. Following installation, commissioning and a 6 month run-in period the actual performance will be assessed against predicted performance. If the heat pump does not meet the guaranteed performance we will refund the cost of the heat pump and remove it from site.
